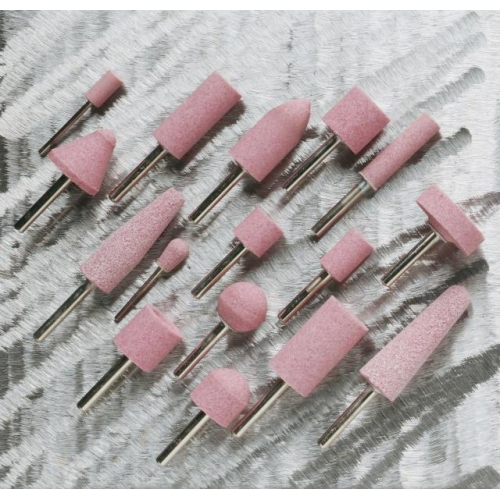

MOUNTED POINTS & WHEELS
MOUNTED POINTS SHAPE A
SHAPE		DIM DIAxL(mm)	SPINDLE DIAxL(mm)	MOS (RPM)
A1		20×65	6×40	15000
		20×65	6×40	15000
A3		22×70	6×40	14000
		22×70	6×40	14000
A5		20×28	6×40	30000
A7		30×50	6×40	13000
A8		20×50	6×40	18000
A9		30×50	6×40	13000
A10		22×70	6×40	14000
A11		21×45	6×40	18000
		21×45	6×40	18000
		21×45	6×40	18000
A12		18×30	6×40	30000
A15		6×25	6×40	30000
A19		30×50	6×40	13000
A21		25×25	6×40	25000
A23		20×25	6×40	25000
A24		6×20	6×40	41000
A25		25×25	6×40	25000
A26		16×16	6×40	54000
A36		40×10	6×40	25000
A37		30×6	6×40	30000
A38		25×25	6×40	25000
A39		20×20	6×41	25000

MOUNTED POINTS SHAPE B
SHAPE		DIM DIAxL(mm)	SPINDLE DIAxL(mm)
B44		6×10	3×40
B52		10×20	3×40
B53		6×16	3×40
B54		6×13	3×40
B81		20×4	3×40
B91		13×16	3×40
B97		3×10	3×40
B121		13×13	3×40
B122		10×3	3×40
B123		5×5	3×40
B131		13×13	3×40

MOUNTED WHEELS
SHAPE		DIM DIAxL(mm)	SPINDLE DIAxL(mm)
W144		3×6	3×40
W149		4×6	3×40
W153		5×10	3×40
W154		5×13	3×40
W162		6×10	3×40
		6×10	3×40
W163		6×13	6×40
		6×13	3×40
W164		6×20	3×40
W169		8×10	3×40
W170		8×13	6×40
W171		8×20	3×40
W175		10×10	3×40
W176		10×13	6×40
W177		10×20	6×40
W179		10×32	6×40
W185		13×13	6×40
W188		13×40	6×40
W195		16×20	6×40
W196		16×25	6×40
W204		20×20	6×40
W205		20×25	6×40
		20×25	6×40
W206		20×32	6×40
W215		25×3	3×40
W220		25×25	6×40
		25×25	6×40
W221		25×40	6×40
W230		32×32	6×40
		32×32	6×40
W232		32×50	6×40
W236		40×13	6×40
W238		40×40	6×40
		40×40	6×40
