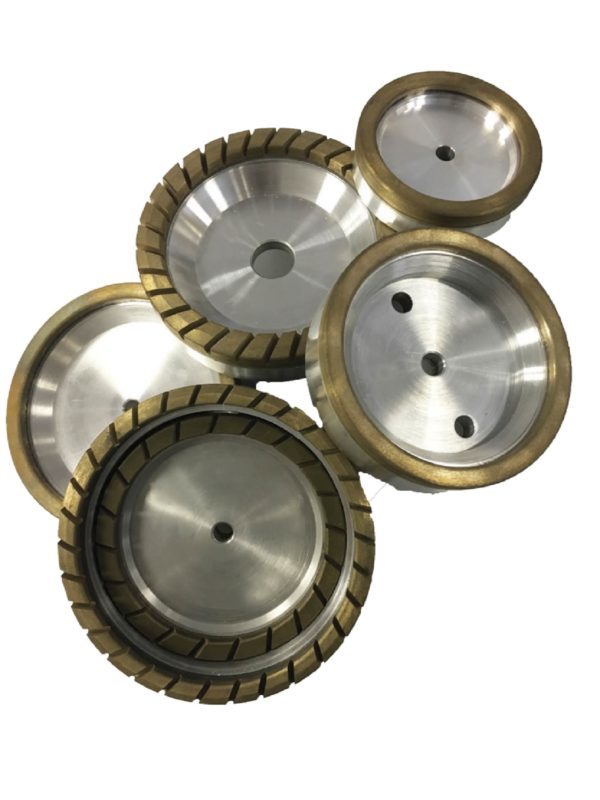

DIAMOND WHEELS

DIA (mm)	Rim	TxB (mm)	Type	Bore (hole)	Grit (range)	Application
150	Continuous	8 x 5	Diamond	12, 22, 50, 70	100 – 270	Straight line edging machine – Flat edge position 1 / 2
150	Segmented	8 x 5	Diamond	12, 22, 50, 70	100 – 270	Straight line edging machine – Flat edge position 1 / 2
150	Continuous	10 x 6	Diamond	12, 22, 50, 70	100 – 270	Straight line edging machine – Flat edge position 1 / 2
150	Segmented	10 x 6	Diamond	12, 22, 50, 70	100 – 270	Straight line edging machine – Flat edge position 1 / 2
150	Segmented	15 x 10	Diamond	12,22	120	Straight line edging machine – Flat edge position 1 for multi laminated glass
150	Segmented	15 x 10	Diamond	12,22	230	Straight line edging machine – Flat edge position 2 for multi laminated glass
100 / 130 / 150	Continuous	8 x 6	Diamond	12, 22	325	Straight line arris grinding
150	Continuous	8 x 6	Diamond	12, 22	80 – 170	Bevelling grinding position 1 / 2
175	Continuous	8 x 8	Diamond	50, 70	100 – 120	Double edge grinding machine position 1
175	Segmented	8 x 8	Diamond	50, 70	100 – 120	Double edge grinding machine position 1
Note: Customised wheels are available on request. Segmented wheels are best suited for laminated glass.

DIAMOND WHEELS – Upright edge grinding / Peripheral DEG grinding
DIA (mm)	Rim	TxB (mm)	Type	Bore (hole)	Grit (range)	Application
240	Continuous	4mm Glass C profile	Diamond	191	230	Upright peripheral profile grinding wheel.
175	Continuous	4mm to 10mm C Profile	Diamond	25 – 70	170 – 270	Upright peripheral profile grinding wheel.
150	Continuous	4mm to 10mm C Profile	Diamond	25 – 70	170 – 270	Upright peripheral profile grinding wheel.
200	Continuous	4mm to 10mm C Profile	Diamond	25 – 70	170 – 270	Upright peripheral profile grinding wheel.
Note: Customised DEG (Double Edge Grinding) and upright peripheral wheels are available.
